Cascaded chiral birefringent media enabled planar lens with programable chromatic aberration

1.
National Laboratory of Solid State Microstructures, Key Laboratory of Intelligent Optical Sensing and Manipulation, College of Engineering and Applied Sciences, Nanjing University, Nanjing, 210023, China
2.
National Key Laboratory of Science and Technology on Space Microwave, China Academy of Space Technology, Xi‘an, China

Funds: This work was supported by the National Key Research and Development Program of China (2022YFA1203703), the National Natural Science Foundation of China (NSFC) (62035008), the Stable Support Fund of State Administration Science Technology and Industry for National Defense (HTKJ2022KL504003), and Fundamental Research Funds for the Central Universities (021314380233).

摘要

- /
- /
- /
- /
- /
- /
- /
- /
- /
- /
- /
Abstract:

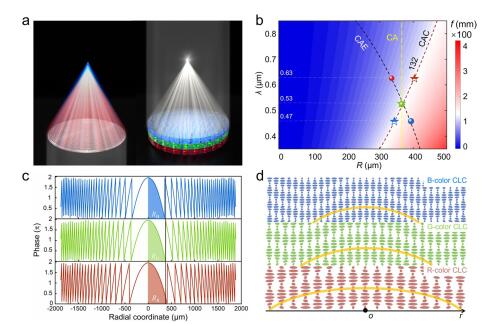

Wavefront control is the fundamental requirement in optical informatics. Planar optics have drawn intensive attention due to the merits of compactness and light weight. However, it remains a challenge to freely manipulate the dispersion, hindering practical applications, especially in imaging. Here, we propose the concept of frequency-synthesized phase engineering to solve this problem. A phasefront-frequency matrix is properly designed to encode different spatial phases to separate frequencies, thus makes arbitrary dispersion tailoring and even frequency-separated functionalization possible. The periodically rotated director endows cholesteric liquid crystal with a spin and frequency selective reflection. Moreover, via presetting the local initial orientation of liquid crystal, geometric phase is encoded to the reflected light. We verify the proposed strategy by cascading the chiral anisotropic optical media of specifically designed helical pitches and initial director orientations. By this means, planar lenses with RGB achromatic, enhanced chromatic aberration and color routing properties are demonstrated. Inch-sized and high-efficient lenses are fabricated with low crosstalk among colors. It releases the freedom of dispersion control of planar optics, and even enables frequency decoupled phase modulations. This work brings new insights to functional planar optics and may upgrade the performance of existing optical apparatuses.

HTML全文

下载: 全尺寸图片幻灯片

参考文献(46)

[1]	Malek SC, Overvig AC, Alu A, Yu N. Multifunctional resonant wavefront-shaping meta-optics based on multilayer and multi-perturbation nonlocal metasurfaces. Light Sci Appl. 2022;11:246.
[2]	Spagele C, et al. Multifunctional wide-angle optics and lasing based on supercell metasurfaces. Nat Commun. 2021;12:3787.
[3]	Yu N, et al. Light propagation with phase discontinuities: generalized laws of reflection and refraction. Science. 2011;334:333–7.
[4]	Sun S, et al. Gradient-index meta-surfaces as a bridge linking propagating waves and surface waves. Nat Mater. 2012;11:426–31.
[5]	Chen P, Wei BY, Hu W, Lu YQ. Liquid-crystal-mediated geometric phase: from transmissive to broadband reflective planar optics. Adv Mater. 2020;32:e1903665.
[6]	Chen QM, Xu CT, Liang X, Hu W. Helical structure endows liquid crystal planar optics with a customizable working band. Adv Quantum Technol. 2023;6:2200153.
[7]	Meem M, et al. Broadband lightweight flat lenses for long-wave infrared imaging. Proc Natl Acad Sci U S A. 2019;116:21375–8.
[8]	Hua X, et al. Ultra-compact snapshot spectral light-field imaging. Nat Commun. 2022;13:2732.
[9]	Khorasaninejad M, Capasso F. Metalenses: versatile multifunctional photonic components. Science. 2017;358:1146.
[10]	Chen WT, et al. A broadband achromatic metalens for focusing and imaging in the visible. Nat Nanotechnol. 2018;13:220–6.
[11]	Chen C, et al. Spectral tomographic imaging with aplanatic metalens. Light Sci Appl. 2019;8:99.
[12]	Arbabi E, Arbabi A, Kamali SM, Horie Y, Faraon A. Controlling the sign of chromatic dispersion in diffractive optics with dielectric metasurfaces. Optica. 2017;4:625–32.
[13]	Chen WT, Zhu AY, Capasso F. Flat optics with dispersion-engineered metasurfaces. Nat Rev Mater. 2020;5:604–20.
[14]	Wang S, et al. A broadband achromatic metalens in the visible. Nat Nanotechnol. 2018;13:227–32.
[15]	Aieta F, Kats MA, Genevet P, Capasso F. Multiwavelength achromatic metasurfaces by dispersive phase compensation. Science. 2015;347:1342–5.
[16]	Balli F, Sultan M, Lami SK, Hastings JT. A hybrid achromatic metalens. Nat Commun. 2020;11:3892.
[17]	Shen Z, et al. Liquid crystal integrated metalens with tunable chromatic aberration. Adv Photonics. 2020;2:036002.
[18]	Li Y, et al. Broadband cholesteric liquid crystal lens for chromatic aberration correction in catadioptric virtual reality optics. Opt Express. 2021;29:6011–20.
[19]	Zhan T, et al. Practical chromatic aberration correction in virtual reality displays enabled by cost-effective ultra-broadband liquid crystal polymer lenses. Adv Opt Mater. 2020;8:2000170.
[20]	Avayu O, Almeida E, Prior Y, Ellenbogen T. Composite functional metasurfaces for multispectral achromatic optics. Nat Commun. 2017;8: 14992.
[21]	Chen WT, et al. Dispersion-engineered metasurfaces reaching broadband 90% relative diffraction efficiency. Nat Commun. 2023;14:2544.
[22]	Zhou Y, et al. Multilayer noninteracting dielectric metasurfaces for multiwavelength metaoptics. Nano Lett. 2018;18:7529–37.
[23]	Li Z, et al. Meta-optics achieves poly-chromatic focusing for virtual reality. Sci Adv. 2021;7:eabe4458.
[24]	Shrestha S, Overvig AC, Lu M, Stein A, Yu N. Broadband achromatic dielectric metalenses. Light Sci Appl. 2018;7:85.
[25]	Xiao X, et al. Large-scale achromatic flat lens by light frequency-domain coherence optimization. Light Sci Appl. 2022;11:323.
[26]	Jiang M, et al. Low f-number diffraction-limited pancharatnam-berry microlenses enabled by plasmonic photopatterning of liquid crystal polymers. Adv Mater. 2019;31:e1808028.
[27]	Xiong J, Zhong H, Cheng D, Wu S-T, Wang Y. Full degree-of-freedom polarization hologram by freeform exposure and inkjet printing. PhotoniX. 2023;4:35.
[28]	Kobashi J, Yoshida H, Ozaki M. Planar optics with patterned chiral liquid crystals. Nat Photonics. 2016;10:389–92.
[29]	Rafayelyan M, Tkachenko G, Brasselet E. Reflective spin-orbit geometric phase from chiral anisotropic optical media. Phys Rev Lett. 2016;116: 253902.
[30]	Barboza R, Bortolozzo U, Clerc MG, Residori S. Berry phase of light under bragg reflection by chiral liquid-crystal media. Phys Rev Lett. 2016;117: 053903.
[31]	Xu CT, et al. Heliconical cholesterics endows spatial phase modulator with an electrically customizable working band. Adv Opt Mater. 2022;10:2201088.
[32]	Chen P, et al. Digitalizing self-assembled chiral superstructures for optical vortex processing. Adv Mater. 2018;30:1705865.
[33]	Kobashi J, Yoshida H, Ozaki M. Polychromatic optical vortex generation from patterned cholesteric liquid crystals. Phys Rev Lett. 2016;116: 253903.
[34]	Khorasaninejad M, et al. Metalenses at visible wavelengths: diffraction-limited focusing and subwavelength resolution imaging. Science. 2016;352:1190–4.
[35]	Zhao M, et al. Phase characterisation of metalenses. Light Sci Appl. 2021;10:52.
[36]	Chen P, et al. Chirality invertible superstructure mediated active planar optics. Nat Commun. 2019;10:2518.
[37]	Xiong J, Wu ST. Planar liquid crystal polarization optics for augmented reality and virtual reality: from fundamentals to applications. eLight. 2021;1:3.
[38]	Chen BH, et al. GaN metalens for pixel-level full-color routing at visible light. Nano Lett. 2017;17:6345–52.
[39]	Yin K, He Z, Wu ST. Reflective polarization volume lens with small f-number and large diffraction angle. Adv Opt Mater. 2020;8:2000170.
[40]	Li L, Shi S, Escuti MJ. Improved saturation and wide-viewing angle color filters based on multi-twist retarders. Opt Express. 2021;29:4124–38.
[41]	Yuan R, et al. Spin-decoupled transflective spatial light modulations enabled by a piecewise-twisted anisotropic monolayer. Adv Sci. 2022;9:e2202424.
[42]	Wei BY, et al. Generating switchable and reconfigurable optical vortices via photopatterning of liquid crystals. Adv Mater. 2014;26:1590–5.
[43]	Zheng ZG, et al. Three-dimensional control of the helical axis of a chiral nematic liquid crystal by light. Nature. 2016;531:352–6.
[44]	Liu J, et al. Circularly polarized luminescence in chiral orientationally ordered soft matter systems. Responsive Mater. 2023;1:e20230005.
[45]	Liu SJ, et al. Bi-chiral nanostructures featuring dynamic optical rotatory dispersion for polychromatic light multiplexing. Adv Mater. 2023;35:e2301714.
[46]	Shi Y, et al. Two-photon laser-written photoalignment layers for patterning liquid crystalline conjugated polymer orientation. Adv Funct Mater. 2020;31:2007493.
